Events

Local logic in IOZER basic is event-based. A program does not run continuously in a loop; it responds to specific triggers.

An event always defines:

• What starts the logic
• Which source the event applies to
• Which code is executed
• Which context data is available to the code

Basic principle

The model follows this pattern:

Trigger -> context -> action

A datapoint is updated, a schedule becomes due, the program starts, or an interface reports an error. The firmware turns this into an event and passes the appropriate context data to the associated Blockly or JavaScript code.

The code runs only when the event is actually triggered. This keeps the logic clear and resource-efficient.

If several events occur simultaneously or in quick succession, they are processed in the order in which they occurred. Execution is sequential: one event finishes completely before the next event starts.

Event program

An IOZER program consists of multiple events. Each event has its own configuration:

Blockly is suitable for visual logic. JavaScript is suitable for more compact or complex processes.

Adding an event

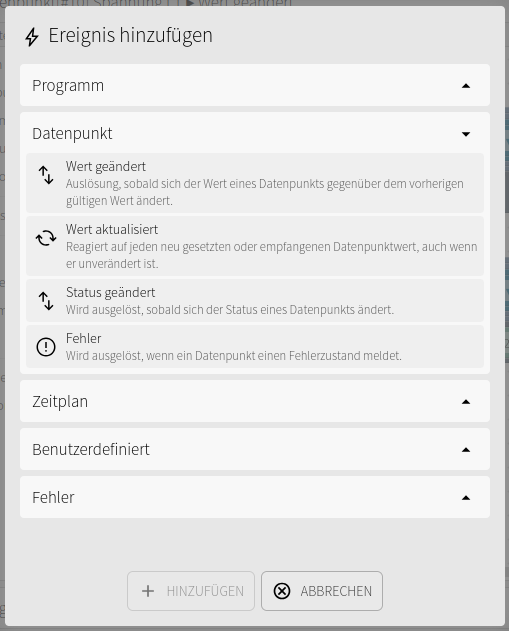

Create new events in the Program section using Add event. The dialog groups the available triggers by functional area.

First select the appropriate group, such as Datapoint, Schedule, Custom, or Error. Then select the specific event type.

The following triggers are typically available for datapoints:

• Value changed: triggered when the value differs from the previous valid value.
• Value updated: triggered for every newly set or received value, even if the value is unchanged.
• Status changed: triggered when the status of a datapoint changes.
• Error: triggered when a datapoint reports an error state.

After it is added, the event appears in the event list. It can then be named, enabled, assigned to a source, and programmed using Blockly or JavaScript.

Triggers

The firmware distinguishes between several event groups.

Digital inputs, digital outputs, 1-Wire values, Modbus values, and MQTT values do not have their own event groups. They are mapped through datapoints. Local logic therefore responds to the relevant datapoint rather than directly to the hardware or protocol source.

Event and source

Many events can be restricted to a specific source.

Examples:

• Datapoint hallway_button changes from false to true
• Datapoint hallway_light changes its state
• Datapoint room_temperature is updated by a 1-Wire sensor
• Datapoint meter_power is updated from a Modbus register
• Datapoint mqtt_setpoint is written over MQTT
• Error source 1-Wire reports a bus or sensor error

If no individual source is selected, an event can respond more generally, depending on its event type.

Context data

During execution, the firmware provides context data. In JavaScript, it is available as ioz_event and ioz_event_context.

General fields:

Additional fields are available depending on the event group.

Inputs, outputs, and interface values are available to logic through the context fields of the associated datapoint. Error events for 1-Wire, Modbus, and MQTT instead provide error context for the affected interface.

Actions in code

Local JavaScript programs can interact with the device using global objects.

Example:

if(ioz_event.datapoint_name = "hallway_button" && ioz_event.value = true) {
  dp.set("hallway_light", true);
  log.info("Hallway light switched on");
}

Datapoints as the central layer

Datapoints are the recommended layer for logic that spans more than one interface.

They are described in detail under Datapoints.

A datapoint can, for example:

• Read from a digital input
• Write to a digital output
• Be published over MQTT
• Be mapped over Modbus
• Be processed in JavaScript

This means that the logic does not need to know whether a value originally came from hardware, MQTT, Modbus, or 1-Wire. It works with a stable logical name.

Manual events

Manual events can be started by other logic. The JavaScript event object is provided for this purpose.

Manual events can receive up to four parameters. These are available in the target event as param1 through param4.

Typical applications:

• Reusable subprocesses
• Delayed actions
• Centralized error handling
• Scenes or operating modes

Schedules

Time-based events use Cron expressions. They can represent recurring or calendar-based actions.

Examples:

• Every day at a specific time
• Every five minutes
• Only on specific weekdays

During execution, the expression is available in the context as cron_expression.

Best practices

• Use datapoints as a stable interface between logic, hardware, and protocols.
• Respond to value changes when an action should run only for actual changes.
• Respond to value updates when identical values must also be processed.
• Keep individual events small and clearly named.
• Use manual events for recurring processes.
• Avoid long blocking processes in an event.
• Document important events with descriptions.

Example sequence

A typical sequence for simple lighting control:

1. A digital input writes the datapoint hallway_button.
2. A value change on hallway_button triggers an event.
3. The logic checks the datapoint value.
4. The datapoint hallway_light is set.
5. The datapoint hallway_light writes to the digital output.
6. The new state is optionally published over MQTT.

The logic remains local on the device while still interacting with MQTT, Modbus, 1-Wire, and the web interface.
