Datapoints

Datapoints form the central logical layer of IOZER basic. They connect hardware, protocols, the web interface, and local logic through a uniform representation of values.

A datapoint describes not only a value but also its meaning, origin, quality, and optional forwarding to other interfaces.

Basic idea

Without datapoints, logic would have to work directly with inputs, outputs, MQTT topics, Modbus registers, or 1-Wire sensors. This quickly becomes difficult to manage when several interfaces interact.

Datapoints decouple the interfaces from the program logic. A datapoint holds the current value and acts as the central hub for its origin, processing, and forwarding.

Data flow between a source, datapoint, target, program logic, and MQTT

The diagram shows the possible data flows:

Connection	Function
Source → datapoint	A source, such as a digital input, 1-Wire sensor, or Modbus register, updates the value.
Datapoint → target	The current value is forwarded to a configured target such as a digital output or Modbus register.
Datapoint → event → program logic	A value change or update can trigger an event in the local program logic.
Program logic → set value → datapoint	Program logic can set the value of a datapoint.
Datapoint → publish → MQTT	The current value can be published through an MQTT topic.
MQTT → subscribe → datapoint	A subscribed MQTT topic can write a new value to the datapoint.

Program logic therefore works with technical names such as room_temperature, hallway_light, or energy_meter. It does not need to know whether a value originally came from a sensor, an MQTT topic, or a Modbus register. The source or target can later be changed without fundamentally rebuilding the functional logic.

Datapoint structure

A datapoint typically contains:

Property	Meaning
ID	Unique internal number
Name	Technical name used by logic and references
Label	Human-readable display name
Description	Documentation of its purpose
Data type	Type of the stored value
Unit	Helps with display and interpretation
Classification	Functional classification
Quality	State of the current value
Read binding	Source from which the value is read
Write binding	Target to which the value is written
MQTT configuration	Optional publishing or writing over MQTT
Persistence	Optional storage of the most recent value

Data types

Type	Use
Boolean	Switching states, enable signals, binary signals
Integer	Counters, steps, integer values
Float	Measurements such as temperature, voltage, or power
String	Text, states, or external messages

The data type determines how values are stored, displayed, and processed in JavaScript.

Classifications

Datapoints can be classified by function. This classification helps with display, interpretation, and integration.

Classification	Typical meaning
Other	General value
Temperature	Temperature measurement
Humidity	Humidity measurement
Voltage	Electrical voltage
Current	Electrical current
Power	Instantaneous power
Energy	Consumption or generation
State	Operating or switching state
Setpoint	Target value
Counter	Counted value
Text	Text information

Quality

In addition to its value, a datapoint has a quality state. This allows logic to determine whether a value is current and trustworthy.

Quality	Meaning
Unknown	No reliable state is known yet
Good	The value is valid
Stale	The value has not been updated for too long
Error	An error occurred while reading or writing
Unavailable	The source or target is unavailable

Bindings

Bindings connect a datapoint to a real source or target.

Binding	Purpose
1-Wire	Read a value from a 1-Wire device
Modbus	Read from or write to Modbus
MQTT	Read from or write to MQTT
Digital input	Read the state, button action, or counter of an input
Digital output	Read or write the output state

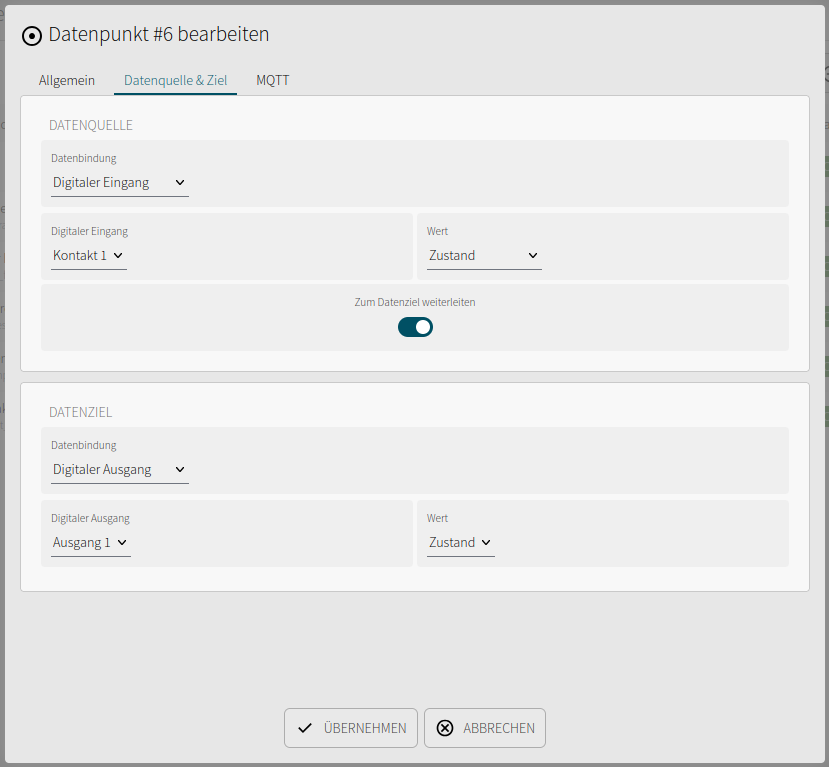

A datapoint can have both a read binding and a write binding. This allows values to be translated between interfaces.

Examples:

An MQTT topic writes a datapoint and the datapoint switches an output.
A digital input writes a datapoint and the datapoint is published over MQTT.
A Modbus register is read into a datapoint and processed by local logic.
A 1-Wire sensor updates a temperature datapoint that is displayed by the web interface and published over MQTT.

Read and write paths

The read path updates the value of a datapoint.

Sensor / input / protocol -> datapoint

The write path sets the value at a target.

Datapoint -> output / protocol / target system

When both paths are combined, the datapoint becomes a neutral mediation layer between systems.

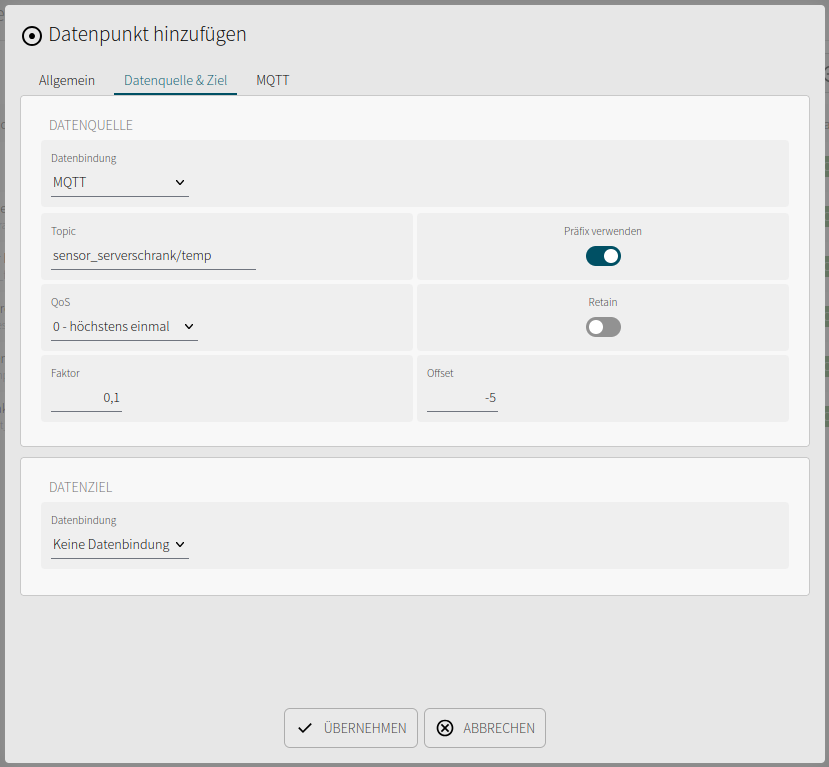

Scaling and conversion

Scale and offset can be used for protocol and sensor values.

logical value = raw value * scale + offset

This is useful when external systems provide values in different units or resolutions.

Examples:

Modbus provides 235 and the datapoint displays 23.5 °C.
A raw value is converted from volts to percent.
An MQTT value is adjusted before local processing.

MQTT

Datapoints can be published or written over MQTT.

For each datapoint, you can define:

Whether the value is published
Whether the value may be written over MQTT
Whether default or custom topics are used
Whether Retain is enabled
Which QoS is used

This allows a datapoint to be integrated directly into external systems without implementing custom MQTT handling in local logic.

Persistence

Datapoints can be stored persistently. This is useful for values that must remain available after a restart.

Typical examples:

Operating modes
Setpoints
Meter readings
Most recently selected states

Use persistence selectively. Transient measurements normally do not need to be stored permanently.

Use in local logic

In JavaScript, datapoints are accessed through the dp object.

Function	Purpose
`dp.get`	Read the current value
`dp.set`	Set a value
`dp.toggle`	Toggle a Boolean value
`dp.state`	Read datapoint status information

Example:

const temperature = dp.get("room_temperature");

if(temperature > 28) {
  dp.set("fan", true);
}

Datapoints and events

Datapoints can trigger events.

Event	Meaning
Value change	The value changed
Value update	The value was updated, even if it remained the same
Status change	The quality or validity changed
Error	An error occurred at the datapoint

The difference between a change and an update is important:

Value changes are suitable for switching logic.
Value updates are suitable for monitoring, logging, or periodic forwarding.

Further details about execution are available under Events.

Best practices

Use descriptive technical names, such as office_room_temperature.
Use labels for human-readable display names.
Select the appropriate classification and unit.
Use datapoints as the interface between logic and hardware.
Avoid direct protocol dependencies in JavaScript when a datapoint is sufficient.
Use persistence only for values that remain relevant after a restart.
Deliberately distinguish between value changes and value updates.

Example

A simple room temperature controller can be structured as follows:

A DS18B20 provides the temperature over 1-Wire.
The value is written to the datapoint room_temperature.
An event responds to value changes of this datapoint.
Local logic compares the value with a setpoint.
The datapoint heating_enable is set.
This datapoint switches a digital output and is optionally published over MQTT.

The logic remains understandable because it works with room_temperature and heating_enable rather than bus addresses, terminals, or MQTT topics.
